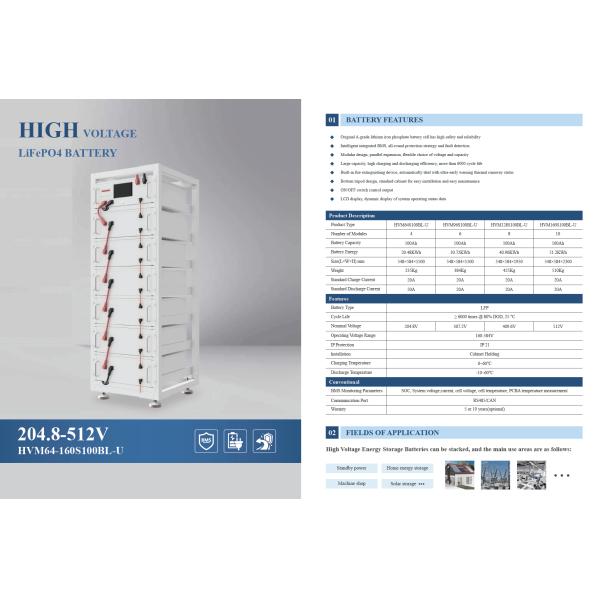

High Voltage LiFePO4 Battery Modules 20.48KWh/30.72KWh/40.96KWh/51.2KWh Emergency Backup
HVM BATTERY FEATURES
Original A-grade lithium iron phosphate battery cell has high safety and reliability
Intelligent integrated BMS, all-round protection strategy and fault detection
Modular design, parallel expansion, flexible choice of voltage and capacity
Large capacity, high charging and discharging efficiency, more than 6000 cycle life
Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status
Bottom tripod design, standard cabinet for easy installation and easy maintenance
ON/OFF switch control output
LCD display, dynamic display of system operating status data
PARAMETERS
| Product Type | HVM64S100BL-U | HVM96S100BL-U | HVM128S100BL-U | HVM160S100BL-U |
| Number of Modules | 4 | 6 | 8 | 10 |
| Battery Capacity | 100Ah |
| Battery Energy | 20.48KWh | 30.72KWh | 40.96KWh | 51.2KWh |
| Size(L×W×H) mm | 548×584×1500 | 548×584×1500 | 548×584×1950 | 548×584×2300 |
| Weight | 235Kg | 384Kg | 425Kg | 510Kg |
| Standard Charge Current | 20A |
| Standard Discharge Current | 20A |
| Battery Type | LFP | LFP | LFP | LFP |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C | ≥ 6000 times @ 80% DOD, 25 °C | ≥ 6000 times @ 80% DOD, 25 °C | ≥ 6000 times @ 80% DOD, 25 °C |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V |
| Operating Voltage Range | 160-584V |
| IP Protection | IP 21 |
| Installation | Cabinet Holding |
| Charging Temperature | 0~60°C |
| Discharge Temperature | -10~60°C |
| BMS Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
| Communication Port | RS485/CAN |
| Warranty | 5 or 10 years(optional) |
